Aluminum Rolling Ladders ∠60º (A - SERIES) A5020H

Aluminum Rolling Ladders ∠60º (A – SERIES) A5020H

Aluminum Rolling Ladders ∠60º (A – SERIES) A5020H Features:



Advanced engineering offers workers performance that’s comparable to steel but, with the added convenience and maneuverability of lightweight aluminum. Titan GSE Aluminum Rolling Ladders travel with ease to wherever workers need them—and then lock securely in place. Up to 300 lbs. capacity. Meets or exceeds OSHA standards.

• Constructed of 1″ diameter rigid all-aluminum alloy tubing.


• Spring-loaded 3″ casters compress to engage rubber-tipped legs, which provide traction and secure the ladder in place when in use.


• Steps are 7″ deep and feature extruded solid ribbed aluminum tread for slip-resistant footing.


• Top step is 14″ for added stability.

Aluminum Rolling Ladders ∠60º (A – SERIES):

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications. Titan GSE , Office: 260-623-0748



Aluminum Rolling Ladders ∠60º (A - SERIES) A5020H

Aluminum Rolling Ladders ∠60º (A - SERIES) A2020

Aluminum Rolling Ladders ∠60º (A – SERIES) A2020



Aluminum Rolling Ladders ∠60º (A – SERIES) A2020 Features:



Advanced engineering offers workers performance that’s comparable to steel but, with the added convenience and maneuverability of lightweight aluminum. Titan GSE Aluminum Rolling Ladders travel with ease to wherever workers need them—and then lock securely in place. Up to 300 lbs. capacity. Meets or exceeds OSHA standards.

• Constructed of 1″ diameter rigid all-aluminum alloy tubing.


• Spring-loaded 3″ casters compress to engage rubber-tipped legs, which provide traction and secure the ladder in place when in use.


• Steps are 7″ deep and feature extruded solid ribbed aluminum tread for slip-resistant footing.


• Top step is 14″ for added stability.

Aluminum Rolling Ladders ∠60º (A – SERIES):

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications. Titan GSE , Office: 260-623-0748

Aluminum Rolling Ladders ∠60º (A - SERIES) A2020

Multi-Directional Ladder (J-series) J006

Multi-Directional Ladder (J-series) J006



Multi-Directional Ladder (J-series) J006 Features:



Titan GSE’S multi-directional rolling ladders have four swivel casters which allows precision steering – enabling easier positioning of ladder in tight areas. Double Ezy-Lock mechanism easily lifts ladder to the rolling position. Stepping on the bottom step secures ladder to floor with large 2-1/2″ diameter pads on each leg.

50 degree incline safety angle on stair makes ascending/descending more comfortable and with less effort. Tough 1″ square tube construction with ergonomic round tube handrails. Weight capacity is 450lbs. Meets OSHA standards

Multi-Directional Ladder (J-series):

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications. Titan GSE , Office: 260-623-0748

Multi-Directional Ladder (J-series) J006

Standard Crossover Platform Ladder CO-6720

Standard Crossover Platform Ladder CO-6720



Standard Crossover Platform Ladder CO-6720 Features:



• 45° angle of climb – 9″ rise, 9″ run


• Two piece construction for easy installation


• 1-1/2″ diameter tubular steel frame


• 24″ wide deck and treads


• 4″ toe board on decks


• 28″ overall width


• Stair supports on larger units


• Yellow enamel painted finish


• Meets OSHA and Cal/OSHA

Options:

• Bridge inserts for additional horizontal clearance


• Custom widths and vertical clearances


• Safety grating steps and decks


• Closed risers


• Center towers for multiple spans


• Special paint colors


• Hot dip galvanized finish

Crossover Units Ladder

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications. 260-623-0748

Standard Crossover Platform Ladder CO-6720

Standard Crossover Platform Ladder CO-4020

Standard Crossover Platform Ladder CO-4020



Standard Crossover Platform Ladder CO-4020 Features:



• 45° angle of climb – 9″ rise, 9″ run


• Two piece construction for easy installation


• 1-1/2″ diameter tubular steel frame


• 24″ wide deck and treads


• 4″ toe board on decks


• 28″ overall width


• Stair supports on larger units


• Yellow enamel painted finish


• Meets OSHA and Cal/OSHA

Options:

• Bridge inserts for additional horizontal clearance


• Custom widths and vertical clearances


• Safety grating steps and decks


• Closed risers


• Center towers for multiple spans


• Special paint colors


• Hot dip galvanized finish

Crossover Units Ladder

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications. 260-623-0748

Standard Crossover Platform Ladder CO-4020

Conveyor Crossover Platform Ladder CU-5820

Conveyor Crossover Platform Ladder CU-5820



Conveyor Crossover Platform Ladder CU-5820 Features:



• 45°  angle of climb – 9″ rise, 9″ run


• Four piece construction for easy installation


• 1-1/2″ diameter tubular steel frame


• 24″ wide deck and treads


• 4″ toeboard on decks


• 28″ overall width


• Yellow enamel painted finish


• Meets OSHA and Cal/OSHA

Options:

• Bridge inserts for additional horizontal clearance


• Custom widths and vertical clearances


• Safety grating steps and decks


• Closed risers


• Center towers for multiple spans


• Custom entry and exit configurations


• Special paint colors


• Hot dip galvanized finish

U Z or Reverse Z Conveyor Crossovers

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications. 260-623-0748

Conveyor Crossover Platform Ladder CU-5820

Conveyor Crossover Platform Ladder CU-4020

Conveyor Crossover Platform Ladder CU-4020



Conveyor Crossover Platform Ladder CU-4020 Features:



• 45°  angle of climb – 9″ rise, 9″ run


• Four piece construction for easy installation


• 1-1/2″ diameter tubular steel frame


• 24″ wide deck and treads


• 4″ toeboard on decks


• 28″ overall width


• Yellow enamel painted finish


• Meets OSHA and Cal/OSHA

Options:

• Bridge inserts for additional horizontal clearance


• Custom widths and vertical clearances


• Safety grating steps and decks


• Closed risers


• Center towers for multiple spans


• Custom entry and exit configurations


• Special paint colors


• Hot dip galvanized finish

U Z or Reverse Z Conveyor Crossovers

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications. 260-623-0748

Conveyor Crossover Platform Ladder CU-4020

Vertical Climb Crossover Platform Ladder CV-6939

Vertical Climb Crossover Platform Ladder CV-6939



Vertical Climb Crossover Platform Ladder CV-6939 Features:



• Two piece construction for easy installation


• 2-1/2″ x 2-1/2″ x 3/16″ steel angle frame


• 1-1/2″ diameter tubular steel guardrails


• Rungs on 12″ centers with dock tread steps


• 4″ toeboard on decks


• 30″ overall width


• Yellow enamel painted finish

Options:

• Bridge inserts for additional horizontal clearance


• Custom widths and vertical clearances


• Safety grate decks and traction tread rung caps


• Center towers for multiple spans


• Special paint colors


• Hot dip galvanized finish

Vertical Climb Conveyor Crossovers Ladder 1

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications. 260-623-0748

Vertical Climb Crossover Platform Ladder CV-6939

Vertical Climb Crossover Platform Ladder CV-5749

Vertical Climb Crossover Platform Ladder CV-5749



Vertical Climb Crossover Platform Ladder CV-5749 Features:



• Two piece construction for easy installation


• 2-1/2″ x 2-1/2″ x 3/16″ steel angle frame


• 1-1/2″ diameter tubular steel guardrails


• Rungs on 12″ centers with dock tread steps


• 4″ toeboard on decks


• 30″ overall width


• Yellow enamel painted finish

Options:

• Bridge inserts for additional horizontal clearance


• Custom widths and vertical clearances


• Safety grate decks and traction tread rung caps


• Center towers for multiple spans


• Special paint colors


• Hot dip galvanized finish

Vertical Climb Conveyor Crossovers Ladder 1

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications. 260-623-0748

Vertical Climb Crossover Platform Ladder CV-5749

Vertical Climb Crossover Platform Ladder CV-4549

Vertical Climb Crossover Platform Ladder CV-4549



Vertical Climb Crossover Platform Ladder CV-4549 Features:



• Two piece construction for easy installation


• 2-1/2″ x 2-1/2″ x 3/16″ steel angle frame


• 1-1/2″ diameter tubular steel guardrails


• Rungs on 12″ centers with dock tread steps


• 4″ toeboard on decks


• 30″ overall width


• Yellow enamel painted finish

Options:

• Bridge inserts for additional horizontal clearance


• Custom widths and vertical clearances


• Safety grate decks and traction tread rung caps


• Center towers for multiple spans


• Special paint colors


• Hot dip galvanized finish

Vertical Climb Conveyor Crossovers Ladder 1

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications. 260-623-0748

Vertical Climb Crossover Platform Ladder CV-4549

Vertical Climb Crossover Platform Ladder CV-3320

Vertical Climb Crossover Platform Ladder CV-3320



Vertical Climb Crossover Platform Ladder CV-3320 Features:



Specifications:

• Two piece construction for easy installation


• 2-1/2″ x 2-1/2″ x 3/16″ steel angle frame


• 1-1/2″ diameter tubular steel guardrails


• Rungs on 12″ centers with dock tread steps


• 4″ toeboard on decks


• 30″ overall width


• Yellow enamel painted finish

Options:

• Bridge inserts for additional horizontal clearance


• Custom widths and vertical clearances


• Safety grate decks and traction tread rung caps


• Center towers for multiple spans


• Special paint colors


• Hot dip galvanized finish

Vertical Climb Conveyor Crossovers Ladder 1

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications. 260-623-0748

Vertical Climb Crossover Platform Ladder CV-3320

Bustin Crossover Ladder - Steel BB3007 5 Step

Bustin Crossover Ladder – Steel BB3007 5 Step

Bustin Crossover Ladder – Steel BB3007 5 Step Features:



Bustin Crossover Ladder – Steel feature the most aggressive walk surface in the market – independently tested to meet or exceed OSHA 1910.29 and ANSI A14.7.

Our robust crossover design translates into greater stability and safety. Compare the Bustin sturdiness difference; then decide.

Standard steel crossover ladders are offered in 20 design configurations and have a stair angle of 50 degrees.

Space saver steel crossover ladders are offered in 16 design configurations and have a stair angle of 70 degrees.

Bustin Crossover Ladder – Steel Specifications:

• Handrail: 42″ high

• Toe plate: 5″ high

• Standard stair angle: 50˚Spacesaver stair angle: 70˚

• Available in diamond plate (will increase weight). To order, add a D after any Part Number (e.g. BE3001D)

• Ships knocked-down to reduce freight cost

PART #	CLEAR SPAN	WIDTH	PLATFORM HT	CLEAR HT	STEPS	WEIGHT	BASE LENGTH
BB3001	24”	24”	32”	31”	3	325 lbs	78”
BB3002	24”	24”	40”	39”	4	370 lbs	91”
BB3003	24”	24”	48”	47”	5	415 lbs	104”
BB3004	24”	24”	56”	55”	6	460 lbs	118”
BB3038	24”	24”	64”	63”	7	445 lbs	143”
BB3005	36”	24”	32”	31”	3	355 lbs	90”
BB3006	36”	24”	40”	39”	4	405 lbs	103”
BB3007	36”	24”	48″	47”	5	450 lbs	116”
BB3008	36”	24”	56”	55”	6	495 lbs	130”
BB3037	36”	24”	64″	63”	7	540 lbs	143”

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications. Titan GSE , Office: 260-623-0748.

Bustin Crossover Ladder - Steel BB3007 5 Step

Bustin Crossover Ladder - Steel BB3038 7 Step

Bustin Crossover Ladder – Steel BB3038 7 Step



Bustin Crossover Ladder – Steel BB3038 7 Step Features:



Bustin Crossover Ladder – Steel feature the most aggressive walk surface in the market – independently tested to meet or exceed OSHA 1910.29 and ANSI A14.7.

Our robust crossover design translates into greater stability and safety. Compare the Bustin sturdiness difference; then decide.

Standard steel crossover ladders are offered in 20 design configurations and have a stair angle of 50 degrees.

Space saver steel crossover ladders are offered in 16 design configurations and have a stair angle of 70 degrees.

Bustin Crossover Ladder – Steel Specifications:

• Handrail: 42″ high

• Toe plate: 5″ high

• Standard stair angle: 50˚Spacesaver stair angle: 70˚

• Available in diamond plate (will increase weight). To order, add a D after any Part Number (e.g. BE3001D)

• Ships knocked-down to reduce freight cost

PART #	CLEAR SPAN	WIDTH	PLATFORM HT	CLEAR HT	STEPS	WEIGHT	BASE LENGTH
BB3001	24”	24”	32”	31”	3	325 lbs	78”
BB3002	24”	24”	40”	39”	4	370 lbs	91”
BB3003	24”	24”	48”	47”	5	415 lbs	104”
BB3004	24”	24”	56”	55”	6	460 lbs	118”
BB3038	24”	24”	64”	63”	7	445 lbs	143”
BB3005	36”	24”	32”	31”	3	355 lbs	90”
BB3006	36”	24”	40”	39”	4	405 lbs	103”
BB3007	36”	24”	48″	47”	5	450 lbs	116”
BB3008	36”	24”	56”	55”	6	495 lbs	130”
BB3037	36”	24”	64″	63”	7	540 lbs	143”

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications. Titan GSE , Office: 260-623-0748.

Bustin Crossover Ladder - Steel BB3038 7 Step

Aluminum Crossover Ladder BE3004 6 Step

Aluminum Crossover Ladder BE3004 6 Step

Aluminum Crossover Ladder BE3004 6 Step Features:



Bustin Aluminum Crossover Ladder feature the most aggressive walk surface in the market – independently tested to meet or exceed OSHA 1910.29 and ANSI A14.7.

Our robust crossover design translates into greater stability and safety. Compare the Bustin sturdiness difference; then decide.

Standard aluminum/steel crossover ladders are offered in 20 design configurations and have a stair angle of 50 degrees.

Space saver aluminum/steel crossover ladders are offered in 16 design configurations and have a stair angle of 70 degrees.

Aluminum Crossover Ladder Specifications:

• Handrail: 42″ high

• Toe plate: 5″ high

• Standard stair angle: 50˚Spacesaver stair angle: 70˚

• Available in diamond plate (will increase weight). To order, add a D after any Part Number (e.g. BE3001D)

• Ships knocked-down to reduce freight cost

PART #	CLEAR SPAN	WIDTH	PLATFORM HT	CLEAR HT	STEPS	WEIGHT	BASE LENGTH
BE3001	24”	24”	32”	31”	3	120 lbs	78”
BE3002	24”	24”	40”	39”	4	135 lbs	91”
BE3003	24”	24”	48”	47”	5	155 lbs	104”
BE3004	24”	24”	56”	55”	6	170 lbs	118”
BE3038	24”	24”	64”	63”	7	171 lbs	131”
BE3005	36”	24”	32”	31”	3	135 lbs	90”
BE3006	36”	24”	40”	39”	4	150 lbs	103”
BE3007	36”	24”	48″	47”	5	170 lbs	116”
BE3008	36”	24”	56”	55”	6	185 lbs	130”
BE3037	36”	24”	64″	63”	7	200 lbs	143”

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications. Titan GSE , Office: 260-623-0748.

Aluminum Crossover Ladder BE3004 6 Step

All Directional Ladder PIP-6 6 Step

All Directional Ladder PIP-6 6 Step



All Directional Ladder PIP-6 6 Step Features:



• Easy to use foot pedal activated


• 450 lbs. capacity


• Gray powder coat finish


• Built to OSHA and ANSI standards


• CAL OSHA available


• Expanded metal tread standard or specify alternate tread

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications.  GSE Specialist standing by, 260-623-0748

All Directional Ladder PIP-6 6 Step

STEPS INCLUDING TOP STEP	HEIGHT INCHES		MODEL #	BASE W”xL”	WGT Lbs.
	TOP STEP	OVER ALL
16″ WIDE STEP
6 STEP	60	93	PIP-6	24 x 49	110
7 STEP	70	103	PIP-7	24 x 55	125
8 STEP	80	113	PIP-8	24 x 61	140
24″ WIDE STEP
6 STEP	60	93	PIP-6-32	32 x 49	133
7 STEP	70	103	PIP-7-32	32 x 55	154
8 STEP	80	113	PIP-8-32	32 x 61	171
9 STEP	90	123	PIP-9	32 x 68	186
10 STEP	100	133	PIP-10	32 x 74	204
11 STEP	110	143	PIP-11	32 x 80	216
12 STEP	120	153	PIP-12	32 x 87	231

M-2000 Series Rolling Safety Ladder 195014

M-2000 Series Rolling Safety Ladder 195014

M-2000 Series Rolling Safety Ladder 195014 Features:



• 450 lbs. capacity


• Easy to use foot pedal activated lockstep


• High quality casters with bearing and dust cover


• 14″ deep top step


• Ladders ship knocked-down for freight savings


• Fully assembled ladders available – specify (SU) set-up


• Expanded metal tread standard or specify alternate tread


• Manufactured with rigid 1″ OD tubing


• 30″ handrails


• 21″ and 28″ deep top step available (specify when ordering)


• Available with Rear Guardrail removed for easy walk through


• Gray powder coat finish


• Built to OSHA and ANSI standards


• CAL OSHA available

Steps	Height (inches)
including top Step	Top Step	Over All	Model #	Base	Wgt
				W” x L”	(lbs)
16″ Wide Step with 24″ Wide Base
5 Step	50	83	52414	24×43	91
6 Step	60	93	62414	24×49	100
7 Step	70	103	72414	24×55	109
8 Step	80	113	82414	24×61	127
24″ Wide Step with 32″-40″ Wide Base
5 Step	50	83	53214	32×43	110
6 Step	60	93	63214	32×49	122
7 Step	70	103	73214	32×55	143
8 Step	80	113	83214	32×61	160
9 Step	90	123	93214	32×68	175
10 Step	100	133	103214	32×74	193
11 Step	110	143	113214	32×80	205
12 Step	120	153	123214	32×87	220
13 Step*	130	175	134014	40×94	250
14 Step*	140	185	144014	40×100	280
15 Step*	150	195	154014	40×106	310
16 Step*	160	205	164214	42×112	375
17 Step*	170	215	174514	45×118	385
18 Step*	180	225	184814	48×125	405
19 Step*	190	235	195014	50×131	420
20 Step*	200	245	205014	52×137	435

*Must be skidded. See price sheet for skidding cost.

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications.  GSE Specialist standing by, 260-623-0748

M-2000 Series Rolling Safety Ladder 195014

M-2000 Series Rolling Safety Ladder 83214

M-2000 Series Rolling Safety Ladder 83214



M-2000 Series Rolling Safety Ladder 83214 Features:



• 450 lbs. capacity


• Easy to use foot pedal activated lockstep


• High quality casters with bearing and dust cover


• 14″ deep top step


• Ladders ship knocked-down for freight savings


• Fully assembled ladders available – specify (SU) set-up


• Expanded metal tread standard or specify alternate tread


• Manufactured with rigid 1″ OD tubing


• 30″ handrails


• 21″ and 28″ deep top step available (specify when ordering)


• Available with Rear Guardrail removed for easy walk through


• Gray powder coat finish


• Built to OSHA and ANSI standards


• CAL OSHA available

Steps	Height (inches)
including top Step	Top Step	Over All	Model #	Base	Wgt
				W” x L”	(lbs)
16″ Wide Step with 24″ Wide Base
5 Step	50	83	52414	24×43	91
6 Step	60	93	62414	24×49	100
7 Step	70	103	72414	24×55	109
8 Step	80	113	82414	24×61	127
24″ Wide Step with 32″-40″ Wide Base
5 Step	50	83	53214	32×43	110
6 Step	60	93	63214	32×49	122
7 Step	70	103	73214	32×55	143
8 Step	80	113	83214	32×61	160
9 Step	90	123	93214	32×68	175
10 Step	100	133	103214	32×74	193
11 Step	110	143	113214	32×80	205
12 Step	120	153	123214	32×87	220
13 Step*	130	175	134014	40×94	250
14 Step*	140	185	144014	40×100	280
15 Step*	150	195	154014	40×106	310
16 Step*	160	205	164214	42×112	375
17 Step*	170	215	174514	45×118	385
18 Step*	180	225	184814	48×125	405
19 Step*	190	235	195014	50×131	420
20 Step*	200	245	205014	52×137	435

*Must be skidded. See price sheet for skidding cost.

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications.  GSE Specialist standing by, 260-623-0748

M-2000 Series Rolling Safety Ladder 83214

Lock-N-Stock Folding Safety Ladder LS2247

Lock-N-Stock Folding Safety Ladder LS2247



Lock-N-Stock Folding Safety Ladder LS2247 Features:



Tired of watching light duty step ladders fall apart? Does the term €œRickety€ come to mind when you think of your current step ladder? Try Ballymore€™s new Lock-N-Stock Folding ladder – 58 degree slope with 7€ deep steps for easy climbing, welded steel construction rated to 350 lbs.

Lock-N-Stock Folding Safety Ladder Features:

• Lock the stair section in place and Climb it €“ Roll it €“ Fold it €“ Store it


• Welded construction


• No hinge to break


• Heavy duty rated for 350 pounds


• Easy to maneuver in the open or closed positions


• Locks in the folded or climbing positions


• Approximately 10€ deep when folded for easy storage


• Built to ANSI 14.2 standards

Lock-N-Stock Folding Safety Ladder Specifications:

Model #	# Steps	Type	Top Step HT	Weight	Open Width and Length	Folded Dimensions	Ships UPS
LS2247	2	Perforated	20″	30	24 x 17	10 x 24 x 41	Yes
LS3247	3	Perforated	30″	35	24 x 23	10 x 24 x 52	Yes
LS4247	4	Perforated	40″	42	24 x 30	10 x 24 x 65	No

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications.  260-623-0748

Lock-N-Stock Folding Safety Ladder LS2247

Colorful Office Ladder AOH226 2 Step

Colorful Office Ladder AOH226 2 Step



Colorful Office Ladder AOH226 2 Step Features:



Our Colorful Office Ladders are ideal for use in banks, libraries, schools, hospitals, and offices.

Colorful Office Ladders Features:

• 300 lbs. capacity


• Easy rolling spring loaded casters


• Ladders ship setup, no assembly required


• Shipped in cartons with an extra set of springs to accomodate different flooring types


• Aluminum models have solid, slip resistant extruded tread


• Steel Ladders available with abrasive mat or perforated tread (please specify when ordering)

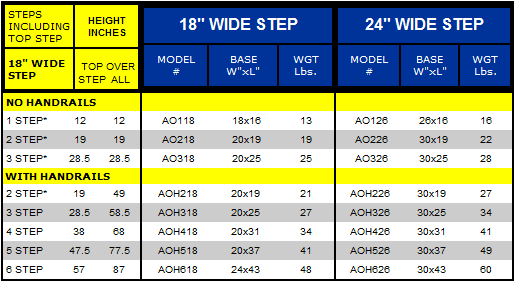

Office Ladder Specifications:

(click on the chart below to view specs)

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications.  260-623-0748



Colorful Office Ladder AOH226 2 Step

Colorful Office Ladder A0118 1 Step

Colorful Office Ladder A0118 1 Step



Colorful Office Ladder A0118 1 Step Features:



Our Colorful Office Ladders are ideal for use in banks, libraries, schools, hospitals, and offices.

Colorful Office Ladders Features:

• 300 lbs. capacity


• Easy rolling spring loaded casters


• Ladders ship setup, no assembly required


• Shipped in cartons with an extra set of springs to accomodate different flooring types


• Aluminum models have solid, slip resistant extruded tread


• Steel Ladders available with abrasive mat or perforated tread (please specify when ordering)

Office Ladder Specifications:

(click on the chart below to view specs)

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications.  260-623-0748

Colorful Office Ladder A0118 1 Step

Portable Two Step Ladder RLAD-2-Y

Portable Two Step Ladder RLAD-2-Y



Portable Two Step Ladder RLAD-2-Y Features:



Mobile two-step design for access to hard-to-reach places. Tubular steel construction. Two step styles to choose from – rubber matting or perforated steel. Two rigid wheels allow for easy tilt and roll portability. Ships knock down for lower shipping costs.  Powder Coat finish.

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications.  GSE Specialist standing by, 260-623-0748

Portable Two Step Ladder RLAD-2-Y

Portable Two-Step Ladders
Model Number	Step Style	Overall Size	Color	Net Wt.
		(WxLxH)		(lbs.)
RLAD-2-Y	Rubber	23″x22-11/16″x42″	Yellow	33
RLAD-2-B	Rubber	23″x22-11/16″x42″	Blue	33
RLAD-P-2-Y	Perforated	23″x22-11/16″x42″	Yellow	39
RLAD-P-2-B	Perforated	23″x22-11/16″x42″	Blue	39

Tip-N-Go Mobile Ladder LAD-TGS-50-6-P 6 Step

Tip-N-Go Mobile Ladder LAD-TGS-50-6-P 6 Step



Tip-N-Go Mobile Ladder LAD-TGS-50-6-P 6 Step Features:



These all welded ladders are available in either straddle or non-straddle design. Uniform capacity is 300 lbs. Available with perforated steps or grip strut steps. Powder coat blue finish.

Tip-N-Go Mobile Ladders
Model Number		# Of	Angle	Top Step	Overall	Net Wt.
		Steps		(WxD)	Size	(lbs)
Perforated Steps	Grip Strut				(WxDxH)
	Steps
 Non-Straddle Design
LAD-TGN-50-2-P	LAD-TGN-50-2-G	2	50°	24″x14″	30″x34″x50″	85
LAD-TGN-50-3-P	LAD-TGN-50-3-G	3	50°	24″x14″	30″x43″x60″	100
LAD-TGN-50-4-P	LAD-TGN-50-4-G	4	50°	24″x14″	30″x52″x70″	167
LAD-TGN-50-5-P	LAD-TGN-50-5-G	5	50°	24″x14″	30″x60-1/2″x80″	202
LAD-TGN-50-6-P	LAD-TGN-50-6-G	6	50°	24″x14″	30″x69-1/2″x90″	235
LAD-TGN-60-2-P	LAD-TGN-60-2-G	2	60°	24″x14″	27″x33″x54-1/2″	111
LAD-TGN-60-3-P	LAD-TGN-60-3-G	3	60°	24″x14″	27-1/2″x40″x64-1/2″	104
LAD-TGN-60-4-P	LAD-TGN-60-4-G	4	60°	24″x14″	28″x46″x74-1/2″	156
LAD-TGN-60-5-P	LAD-TGN-60-5-G	5	60°	24″x14″	29″x53″x84-1/2″	149
LAD-TGN-60-6-P	LAD-TGN-60-6-G	6	60°	24″x14″	29-1/2″x60″x94-1/2″	220
 Straddle Design
LAD-TGS-50-2-P	LAD-TGS-50-2-G	2	50°	24″x21″	27-1/2″x42″x54-1/2″	120
LAD-TGS-50-3-P	LAD-TGS-50-3-G	3	50°	24″x21″	28″x51″x64-1/2″	128
LAD-TGS-50-4-P	LAD-TGS-50-4-G	4	50°	24″x21″	29″x54-1/2″x74-1/2″	213
LAD-TGS-50-5-P	LAD-TGS-50-5-G	5	50°	24″x21″	29-1/2″x68″x84-1/2″	238
LAD-TGS-50-6-P	LAD-TGS-50-6-G	6	50°	24″x21″	30″x76-1/2″x94-1/2″	294
LAD-TGS-60-2-P	LAD-TGS-60-2-G	2	60°	24″x21″	30″x41″x54-1/2″	132
LAD-TGS-60-3-P	LAD-TGS-60-3-G	3	60°	24″x21″	30″x49″x70″	120
LAD-TGS-60-4-P	LAD-TGS-60-4-G	4	60°	24″x21″	30″x59″x80″	177
LAD-TGS-60-5-P	LAD-TGS-60-5-G	5	60°	24″x21″	30″x59″x90″	230
LAD-TGS-60-6-P	LAD-TGS-60-6-G	6	60°	24″x21″	30″x79″x100″	264

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications.  GSE Specialist standing by, 260-623-0748

Tip-N-Go Mobile Ladder LAD-TGS-50-6-P 6 Step

Tip-N-Go Mobile Ladder LAD-TGS-50-2-P 2 Step

Tip-N-Go Mobile Ladder LAD-TGS-50-2-P 2 Step



Tip-N-Go Mobile Ladder LAD-TGS-50-2-P 2 Step Features:



These all welded ladders are available in either straddle or non-straddle design. Uniform capacity is 300 lbs. Available with perforated steps or grip strut steps. Powder coat blue finish.

Tip-N-Go Mobile Ladders
Model Number		# Of	Angle	Top Step	Overall	Net Wt.
		Steps		(WxD)	Size	(lbs)
Perforated Steps	Grip Strut				(WxDxH)
	Steps
 Non-Straddle Design
LAD-TGN-50-2-P	LAD-TGN-50-2-G	2	50°	24″x14″	30″x34″x50″	85
LAD-TGN-50-3-P	LAD-TGN-50-3-G	3	50°	24″x14″	30″x43″x60″	100
LAD-TGN-50-4-P	LAD-TGN-50-4-G	4	50°	24″x14″	30″x52″x70″	167
LAD-TGN-50-5-P	LAD-TGN-50-5-G	5	50°	24″x14″	30″x60-1/2″x80″	202
LAD-TGN-50-6-P	LAD-TGN-50-6-G	6	50°	24″x14″	30″x69-1/2″x90″	235
LAD-TGN-60-2-P	LAD-TGN-60-2-G	2	60°	24″x14″	27″x33″x54-1/2″	111
LAD-TGN-60-3-P	LAD-TGN-60-3-G	3	60°	24″x14″	27-1/2″x40″x64-1/2″	104
LAD-TGN-60-4-P	LAD-TGN-60-4-G	4	60°	24″x14″	28″x46″x74-1/2″	156
LAD-TGN-60-5-P	LAD-TGN-60-5-G	5	60°	24″x14″	29″x53″x84-1/2″	149
LAD-TGN-60-6-P	LAD-TGN-60-6-G	6	60°	24″x14″	29-1/2″x60″x94-1/2″	220
 Straddle Design
LAD-TGS-50-2-P	LAD-TGS-50-2-G	2	50°	24″x21″	27-1/2″x42″x54-1/2″	120
LAD-TGS-50-3-P	LAD-TGS-50-3-G	3	50°	24″x21″	28″x51″x64-1/2″	128
LAD-TGS-50-4-P	LAD-TGS-50-4-G	4	50°	24″x21″	29″x54-1/2″x74-1/2″	213
LAD-TGS-50-5-P	LAD-TGS-50-5-G	5	50°	24″x21″	29-1/2″x68″x84-1/2″	238
LAD-TGS-50-6-P	LAD-TGS-50-6-G	6	50°	24″x21″	30″x76-1/2″x94-1/2″	294
LAD-TGS-60-2-P	LAD-TGS-60-2-G	2	60°	24″x21″	30″x41″x54-1/2″	132
LAD-TGS-60-3-P	LAD-TGS-60-3-G	3	60°	24″x21″	30″x49″x70″	120
LAD-TGS-60-4-P	LAD-TGS-60-4-G	4	60°	24″x21″	30″x59″x80″	177
LAD-TGS-60-5-P	LAD-TGS-60-5-G	5	60°	24″x21″	30″x59″x90″	230
LAD-TGS-60-6-P	LAD-TGS-60-6-G	6	60°	24″x21″	30″x79″x100″	264

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications.  GSE Specialist standing by, 260-623-0748

Tip-N-Go Mobile Ladder LAD-TGS-50-2-P 2 Step

Tip-N-Go Mobile Ladder LAD-TGN-60-2-G 2 Step

Tip-N-Go Mobile Ladder LAD-TGN-60-2-G 2 Step



Tip-N-Go Mobile Ladder LAD-TGN-60-2-G 2 Step Features:



These all welded ladders are available in either straddle or non-straddle design. Uniform capacity is 300 lbs. Available with perforated steps or grip strut steps. Powder coat blue finish.

Tip-N-Go Mobile Ladders
Model Number		# Of	Angle	Top Step	Overall	Net Wt.
		Steps		(WxD)	Size	(lbs)
Perforated Steps	Grip Strut				(WxDxH)
	Steps
 Non-Straddle Design
LAD-TGN-50-2-P	LAD-TGN-50-2-G	2	50°	24″x14″	30″x34″x50″	85
LAD-TGN-50-3-P	LAD-TGN-50-3-G	3	50°	24″x14″	30″x43″x60″	100
LAD-TGN-50-4-P	LAD-TGN-50-4-G	4	50°	24″x14″	30″x52″x70″	167
LAD-TGN-50-5-P	LAD-TGN-50-5-G	5	50°	24″x14″	30″x60-1/2″x80″	202
LAD-TGN-50-6-P	LAD-TGN-50-6-G	6	50°	24″x14″	30″x69-1/2″x90″	235
LAD-TGN-60-2-P	LAD-TGN-60-2-G	2	60°	24″x14″	27″x33″x54-1/2″	111
LAD-TGN-60-3-P	LAD-TGN-60-3-G	3	60°	24″x14″	27-1/2″x40″x64-1/2″	104
LAD-TGN-60-4-P	LAD-TGN-60-4-G	4	60°	24″x14″	28″x46″x74-1/2″	156
LAD-TGN-60-5-P	LAD-TGN-60-5-G	5	60°	24″x14″	29″x53″x84-1/2″	149
LAD-TGN-60-6-P	LAD-TGN-60-6-G	6	60°	24″x14″	29-1/2″x60″x94-1/2″	220
 Straddle Design
LAD-TGS-50-2-P	LAD-TGS-50-2-G	2	50°	24″x21″	27-1/2″x42″x54-1/2″	120
LAD-TGS-50-3-P	LAD-TGS-50-3-G	3	50°	24″x21″	28″x51″x64-1/2″	128
LAD-TGS-50-4-P	LAD-TGS-50-4-G	4	50°	24″x21″	29″x54-1/2″x74-1/2″	213
LAD-TGS-50-5-P	LAD-TGS-50-5-G	5	50°	24″x21″	29-1/2″x68″x84-1/2″	238
LAD-TGS-50-6-P	LAD-TGS-50-6-G	6	50°	24″x21″	30″x76-1/2″x94-1/2″	294
LAD-TGS-60-2-P	LAD-TGS-60-2-G	2	60°	24″x21″	30″x41″x54-1/2″	132
LAD-TGS-60-3-P	LAD-TGS-60-3-G	3	60°	24″x21″	30″x49″x70″	120
LAD-TGS-60-4-P	LAD-TGS-60-4-G	4	60°	24″x21″	30″x59″x80″	177
LAD-TGS-60-5-P	LAD-TGS-60-5-G	5	60°	24″x21″	30″x59″x90″	230
LAD-TGS-60-6-P	LAD-TGS-60-6-G	6	60°	24″x21″	30″x79″x100″	264

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications.  GSE Specialist standing by, 260-623-0748

Tip-N-Go Mobile Ladder LAD-TGN-60-2-G 2 Step

Tip-N-Go Mobile Ladder LAD-TGN-50-2-P 2 Step

Tip-N-Go Mobile Ladder LAD-TGN-50-2-P 2 Step



Tip-N-Go Mobile Ladder LAD-TGN-50-2-P 2 Step Features:



These all welded ladders are available in either straddle or non-straddle design. Uniform capacity is 300 lbs. Available with perforated steps or grip strut steps. Powder coat blue finish.

Tip-N-Go Mobile Ladders
Model Number		# Of	Angle	Top Step	Overall	Net Wt.
		Steps		(WxD)	Size	(lbs)
Perforated Steps	Grip Strut				(WxDxH)
	Steps
 Non-Straddle Design
LAD-TGN-50-2-P	LAD-TGN-50-2-G	2	50°	24″x14″	30″x34″x50″	85
LAD-TGN-50-3-P	LAD-TGN-50-3-G	3	50°	24″x14″	30″x43″x60″	100
LAD-TGN-50-4-P	LAD-TGN-50-4-G	4	50°	24″x14″	30″x52″x70″	167
LAD-TGN-50-5-P	LAD-TGN-50-5-G	5	50°	24″x14″	30″x60-1/2″x80″	202
LAD-TGN-50-6-P	LAD-TGN-50-6-G	6	50°	24″x14″	30″x69-1/2″x90″	235
LAD-TGN-60-2-P	LAD-TGN-60-2-G	2	60°	24″x14″	27″x33″x54-1/2″	111
LAD-TGN-60-3-P	LAD-TGN-60-3-G	3	60°	24″x14″	27-1/2″x40″x64-1/2″	104
LAD-TGN-60-4-P	LAD-TGN-60-4-G	4	60°	24″x14″	28″x46″x74-1/2″	156
LAD-TGN-60-5-P	LAD-TGN-60-5-G	5	60°	24″x14″	29″x53″x84-1/2″	149
LAD-TGN-60-6-P	LAD-TGN-60-6-G	6	60°	24″x14″	29-1/2″x60″x94-1/2″	220
 Straddle Design
LAD-TGS-50-2-P	LAD-TGS-50-2-G	2	50°	24″x21″	27-1/2″x42″x54-1/2″	120
LAD-TGS-50-3-P	LAD-TGS-50-3-G	3	50°	24″x21″	28″x51″x64-1/2″	128
LAD-TGS-50-4-P	LAD-TGS-50-4-G	4	50°	24″x21″	29″x54-1/2″x74-1/2″	213
LAD-TGS-50-5-P	LAD-TGS-50-5-G	5	50°	24″x21″	29-1/2″x68″x84-1/2″	238
LAD-TGS-50-6-P	LAD-TGS-50-6-G	6	50°	24″x21″	30″x76-1/2″x94-1/2″	294
LAD-TGS-60-2-P	LAD-TGS-60-2-G	2	60°	24″x21″	30″x41″x54-1/2″	132
LAD-TGS-60-3-P	LAD-TGS-60-3-G	3	60°	24″x21″	30″x49″x70″	120
LAD-TGS-60-4-P	LAD-TGS-60-4-G	4	60°	24″x21″	30″x59″x80″	177
LAD-TGS-60-5-P	LAD-TGS-60-5-G	5	60°	24″x21″	30″x59″x90″	230
LAD-TGS-60-6-P	LAD-TGS-60-6-G	6	60°	24″x21″	30″x79″x100″	264

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications.  GSE Specialist standing by, 260-623-0748

Tip-N-Go Mobile Ladder LAD-TGN-50-2-P 2 Step

Stock Picking Ladder SPL-11-14 11 Step

Stock Picking Ladder SPL-11-14 11 Step

Stock Picking Ladder SPL-11-14 11 Step  Features:



€ 24€ wide steps, choice of 14€ top step or 21€ deep top step
€ Sturdy, 24€x 24€ shelves: 2 shelves on 6 – 7 step models; 3 shelves on 8 – 12 step models
€ Combined 600 lbs. capacity – 300 lbs. for the ladder and 300 lbs. for the storage shelves
€ Standard finish is grey powder coat
€ Expanded metal tread standard or specify alternate tread

(Click on the photo below to view the specification chart)

STEPS INCLUDING TOP STEP		HEIGHT INCHES		MODEL #	BASE W”xL”	WGT Lbs.
		TOP STEP	OVER ALL
16″ WIDE TREAD 14″ Deep Top Step
6 STEP		60	93	SPL-6-14N	24 x 49	80
7 STEP		70	103	SPL-7-14N	24 x 55	89
8 STEP		80	113	SPL-8-14N	24 x 61	120
16″ WIDE TREAD 21″ Deep Top Step
6 STEP		60	93	SPL-6-N	24 x 56	91
7 STEP		70	103	SPL-7-N	24 x 62	100
8 STEP		80	113	SPL-8-N	24 x 68	131
24″ WIDE TREAD 14″ Deep Top Step
6 STEP		60	93	SPL-6-14	32 x 49	150
7 STEP		70	103	SPL-7-14	32 x 55	166
8 STEP		80	113	SPL-8-14	32 x 61	205
9 STEP		90	123	SPL-9-14	32 x 68	215
10 STEP		100	133	SPL-10-14	32 x 74	225
11 STEP		110	143	SPL-11-14	32 x 80	235
12 STEP		120	153	SPL-12-14	32 x 87	250
24″ WIDE TREAD 21″ Deep Top Step
6 STEP		60	93	SPL-6	32 x 56	160
7 STEP		70	103	SPL-7	32 x 62	176
8 STEP	A	80	113	SPL-8	32 x 68	215
9 STEP	A	90	123	SPL-9	32 x 75	225
10 STEP	A	100	133	SPL-10	32 x 81	235
11 STEP	A	110	143	SPL-11	32 x 87	245
12 STEP	A	120	153	SPL-12	32 x 94	260

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications. 260-623-0748

Stock Picking Ladder SPL-11-14 11 Step

Stock Picking Ladder SPL-9 9 Step

 Stock Picking Ladder SPL-9 9 Step



 Stock Picking Ladder SPL-9 9 Step Features:



24€ wide steps, choice of 14€ top step or 21€ deep top step
€ Sturdy, 24€x 24€ shelves: 2 shelves on 6 – 7 step models; 3 shelves on 8 – 12 step models
€ Combined 600 lbs. capacity – 300 lbs. for the ladder and 300 lbs. for the storage shelves
€ Standard finish is grey powder coat
€ Expanded metal tread standard or specify alternate tread

(Click on the photo below to view the specification chart)

STEPS INCLUDING TOP STEP		HEIGHT INCHES		MODEL #	BASE W”xL”	WGT Lbs.
		TOP STEP	OVER ALL
16″ WIDE TREAD 14″ Deep Top Step
6 STEP		60	93	SPL-6-14N	24 x 49	80
7 STEP		70	103	SPL-7-14N	24 x 55	89
8 STEP		80	113	SPL-8-14N	24 x 61	120
16″ WIDE TREAD 21″ Deep Top Step
6 STEP		60	93	SPL-6-N	24 x 56	91
7 STEP		70	103	SPL-7-N	24 x 62	100
8 STEP		80	113	SPL-8-N	24 x 68	131
24″ WIDE TREAD 14″ Deep Top Step
6 STEP		60	93	SPL-6-14	32 x 49	150
7 STEP		70	103	SPL-7-14	32 x 55	166
8 STEP		80	113	SPL-8-14	32 x 61	205
9 STEP		90	123	SPL-9-14	32 x 68	215
10 STEP		100	133	SPL-10-14	32 x 74	225
11 STEP		110	143	SPL-11-14	32 x 80	235
12 STEP		120	153	SPL-12-14	32 x 87	250
24″ WIDE TREAD 21″ Deep Top Step
6 STEP		60	93	SPL-6	32 x 56	160
7 STEP		70	103	SPL-7	32 x 62	176
8 STEP	A	80	113	SPL-8	32 x 68	215
9 STEP	A	90	123	SPL-9	32 x 75	225
10 STEP	A	100	133	SPL-10	32 x 81	235
11 STEP	A	110	143	SPL-11	32 x 87	245
12 STEP	A	120	153	SPL-12	32 x 94	260

Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications.

Stock Picking Ladder SPL-9 9 Step
