Tank Top Lift Ladder

Tank Top Lift Ladder Features:

• Provides easy access to tank trucks, railroad cars or other applications


• For use on hard level surfaces


• 48€ long cantilevered platforms


• Hydraulic hand pump raises and lowers platform


• Step and deck tread is open serrated grating, while slip resistant rungs provide access when platform is raised


• Base is 28€ wide and 60€ long, fixed outriggers spread 69€


• Full rails on both sides with gates at each end


• Recommended Option: 30€ extension railing


• Manually propelled


• Two swivel and two rigid 8€ casters for use on hard surfaces


• Two adjustable stabilizing jacks secure lifts to ground


• Available with a fixed platform height


• 300 lbs. load capacity


• Standard finish deep gray enamel paint, safety orange also available

Tank Top Lift Ladder Specifications:

Model Number	Platform Max	Height Min	Platform Length	Platform Width	Under-clearance Height	Weight Lbs.

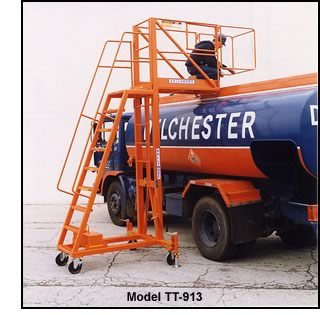

TT-913	13′ 8 “	9′ 4″	48″	24″	Adjustable 9′ to 13′	1525
TT-913F	13′ 8 “	9′ 4″	48″	24″	Non-Adjustable 9′ to 13′	1450



Titan GSE is YOUR total ground support equipment provider. We can customize any ground support equipment to suit your specifications.
